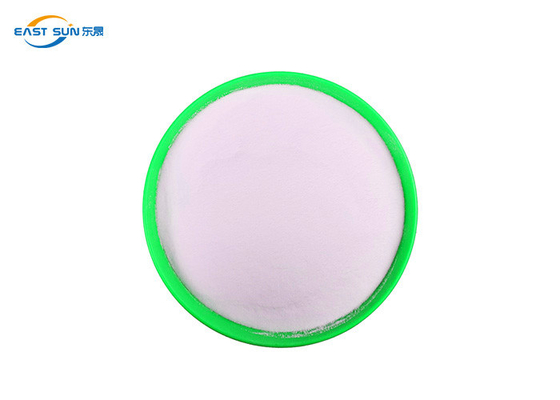

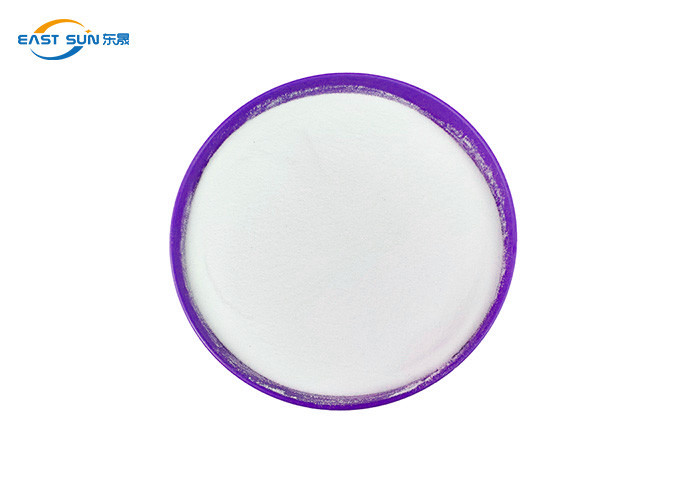

Thermoplastic Polyurethane PU DTF Hot Melt Powder Silk Screen Printing
Product model: ES227
Description: TPU polyurethane hot melt adhesive powder . The product has a soft hand feel,good resilience, It has excellent bonding properties to textiles.
DTF Hot Melt Powder Function:Heat transfer,Digital printing.
DTF Hot Melt Powder Physical Characteristics:
| Property | Criterion |
| Appearance | White powder |
| Composition | TPU |
| Density ASTM D-792 | 1.2±0.02g/cm³ |
| Melt Point DSC | 105-115 ℃ |
| Melt Index ASTM D-1238 | 78±3 Shore A |
| Powder size range | 0-80 um |
| 0-170 um | |
| 80-200 um | |
| 125-200 um | |
| 150-250 um |
Technical Parameters:
| Bonding parameters (for reference only) | Temperature | 110-130℃ |
| Press | 3.0 kg/cm2 | |
| Time | 5-10S | |
| Washing Resistance | 40℃ | Excellent |
| 60℃ | good | |
| 90℃ | / |
Packaging and Storage Conditions:
| Packaging | 25KG in one PE bag+Brown paper bag |
| Storage Conditions | Stored in dry unopened packaging at room temperature for 12 months. High temperature and pressure will cause agglomeration. The trays cannot be double-pressed. |
1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
